Auto Perimeter - EP1
The EAP 1 Ultrasonic Biometer is an essential ophthalmic tool for accurately measuring the eye’s axial length, a critical step in determining intraocular lens (IOL) power prior to cataract surgery. Utilizing ultrasound technology, it delivers precise measurements of key internal structures such as the cornea, lens, and retina. This ensures enhanced precision in both refractive and cataract surgeries. The device is non-invasive, offering fast and reliable results for improved surgical outcomes.
Product Representation
- Standard Goldmann White-on-White Perimeter
Features a white stimulus on a white background for highly accurate perimeter testing, adhering to the renowned Goldmann protocol.

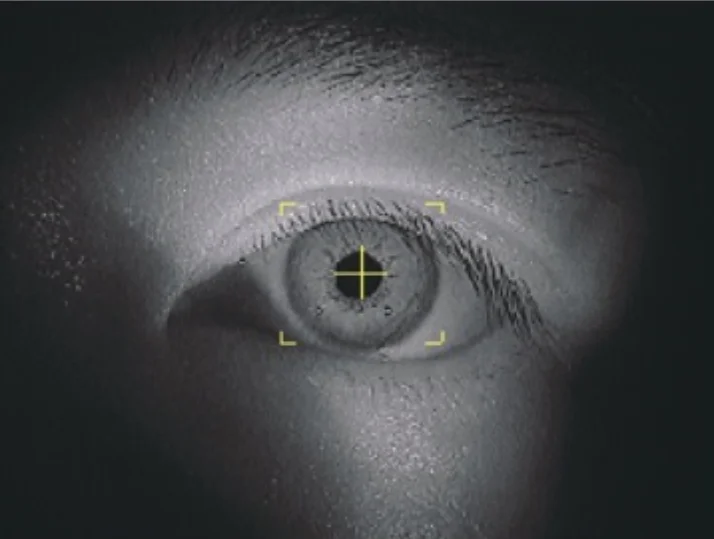

- Automatic Eye Recognition and Pupil Diameter Measurement
The system automatically detects the right (OD) or left (OS) eye and provides an alert to help prevent operational errors during testing. Additionally, it measures pupil diameter automatically, serving as a reference to adjust OD/MD values for enhanced visual accuracy.
- AI-Controlled Chinrest and Forehead Rest
Equipped with an intelligent, fully automated chinrest and forehead rest system, ensuring precise alignment of the patient’s eye position. The synchronized movement of the chinrest and forehead support enhances both comfort and testing accuracy.
- Voice Guidance System
Offers voice instructions to guide patients before and throughout the test, improving cooperation and reducing the need for manual intervention.
- Doubtful Points Recheck
Efficient recheck functionality allows verification of uncertain test points, reducing the need for a full retest and saving valuable time in clinical settings.
- DICOM Integration
Enables seamless patient data management, including easy uploading and downloading of information in compliance with DICOM standards.
- Blue-on-Yellow Test (SWAP)
A specialised testing mode for glaucoma detection, available exclusively on the EP 1 Pro model.
Software Representation
Efficient Testing Strategies = Reduced Test Time + Enhanced Accuracy
The testing strategies are thoughtfully designed to account for various age groups, patient responsiveness, patterns of visual field defects, and the distribution of the visual field. This smart, intelligent, and interactive approach ensures faster and more reliable perimetry testing.

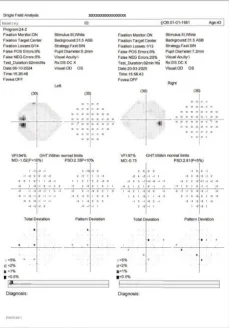

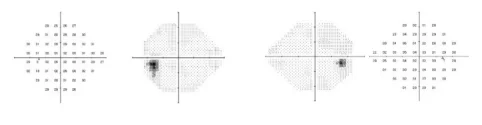

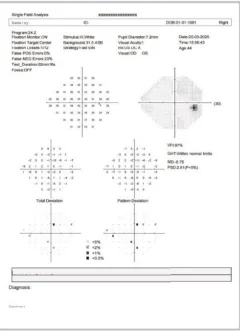

Classic Test Report
The test report follows a universally recognised classic format, making it easy for doctors worldwide to interpret and understand.
EP1 Auto Perimeter Technical Specification
| Model / Parameter | Details | ||
|---|---|---|---|
| DB Value Range displayed | 0~51dB | ||
| Stimulus Intensity Range | 0.08asb to 10000asb | ||
| Stimulus Size | Goldmann I-V | ||
| Stimulus Color | White, Red, Blue | ||
| Stimulus Duration Time | 200ms / Adaptive | ||
| Max Measurement Range | 90° | ||
| Test Distance | 30cm | ||
| Sphere Size | Radius 300mm | ||
| Background Illumination | White 31.5asb / Yellow 31.5asb | ||
| Test Mode | Static & Kinetic | ||
| Stimulus Quantity | Unlimited | ||
| Stimulus Plane | Aspherical Surface | ||
| Stimulus Source | Halogen | ||
| Control | Touch Screen, Keyboard and Mouse Control, Button Control | ||
| Head Movement | Chinrest and forehead rest move simultaneously | ||
| PC Configuration | CPU: 1.6 GHz; RAM: 4 GB; Hard disk: 120 GB | ||
| Operation System: Windows 10; | |||
| LCD: 14" Capacitive Touch Screen; | |||
| Networking: Ethernet & WIFI | |||

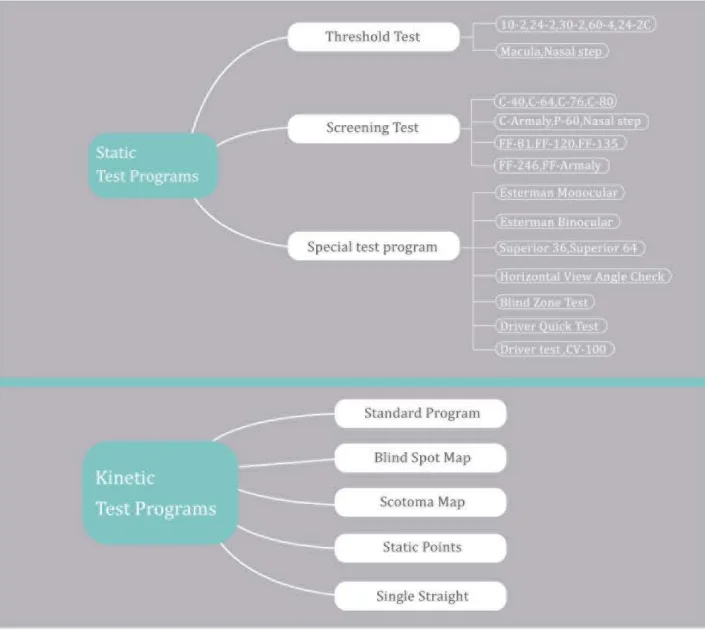

| Software Function | Test Programs | threshold Test Programs | 10-2, 24-2, 30-2, 60-2, Macula, Nasal Step, 24-2c, |
| Screening Test Programs | c-40, C-64, 30-2, 60-2, Macula, Nasal Step, 24-2c, | ||
| Special Test Programs | EstarMan, Monicular, EstarMan, Monicular, EstarMan, Monicular, EstarMan, Monicular, EstarMan, Monicular | ||
| Kinetic Programms | Standerd Program, BlindSpot Map, Scotoma Map, | ||

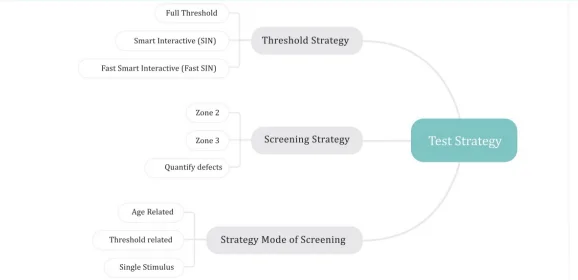

| Test Stratagy | threshold Stratagy | Full ThreShold, Smart Interactive (SIN) | |
| Screening Stratagy | Zone 2, Zone 3, Quantify Defects | ||
| Stratagy Made Of Screening | Age Related, ThreShold Related, Single Simulus | ||

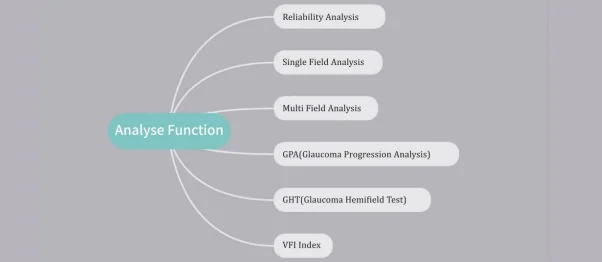

| Analyze Function | Single Field Analysis, Multi field Analysis, reliability Analysis, | ||

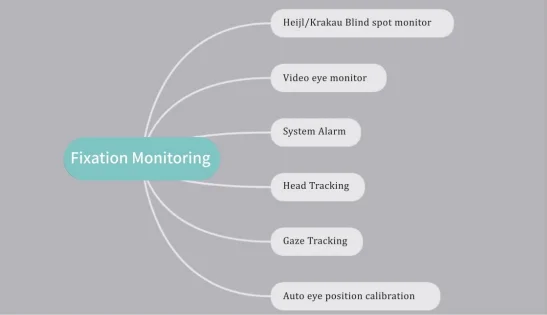

| Fixation Monitoring | BlindSpot Monitor, Video eye Monitor, System Alaram, Head Tracking, Gaze Tracking, Auto eye position Calibration | ||
| DICOM Support | * | ||
| voice Guidance Support | * | ||
| Fixation Deviation Alaram | * | ||
| Customize test Program | * | ||
| Auto OD/OS recognition | * | ||
| Dimension | 430mm(L) x 430mm(W) x 560mm(H), 24 kgs | ||
| Packaging | 560mm(L) x 500mm(W) x 700mm(H), 28 kgs | ||
| Others | Power consumption: 200W; Input Voltage: AC 100-240V, 50-60Hz | ||
