B-Scan Enhanced Visibility and User-friendliness
- Image/Video Buffer Slots: Allows users to instantly capture, review, and compare images or videos for quick analysis.
- Real-Time Capture in Lossless Format: Images and videos are recorded in real time and saved in high-quality lossless formats such as .bmp and .avi to preserve details.
- Zoom & Scan Depth Adjustment: Enables precise zooming and depth control to enhance the observation of ocular structures and detect eye diseases more effectively.
- Vitreous-Enhanced Mode: Improves visibility of the vitreous body, providing clearer and more detailed insights for better diagnosis of vitreous-related conditions.
A-Scan & IOL Calculation Enhancements and Tight Integration
Biometry Buffer Slots: Allows for instant capture, review, and comparison of biometry measurements, ensuring efficient and accurate assessments.
Enhanced Accuracy and Reliability: Provides Average and Standard Deviation values for up to 10 scans per exam, ensuring consistent and precise results.
Comprehensive IOL Calculations: Includes 6 popular IOL formulae and 5 post-refractive IOL formulae, covering a wide range of patient needs for accurate intraocular lens selection.
Full Reporting Capabilities
Comprehensive report combining A-scan/IOL measurements, B-scan images, and doctor’s notes, featuring a customizable symptom dictionary for tailored documentation.
Comprehensive Data Archiving and Management
The user-friendly interface enables seamless loading, searching, and printing of data, with unlimited storage capacity to manage over 20,000 exams, each containing up to 8 lossless images per exam.
Features

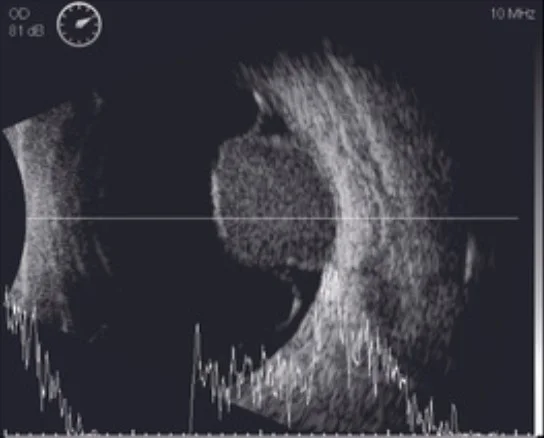

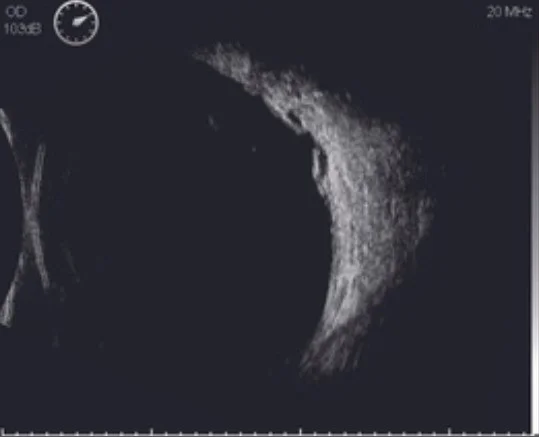

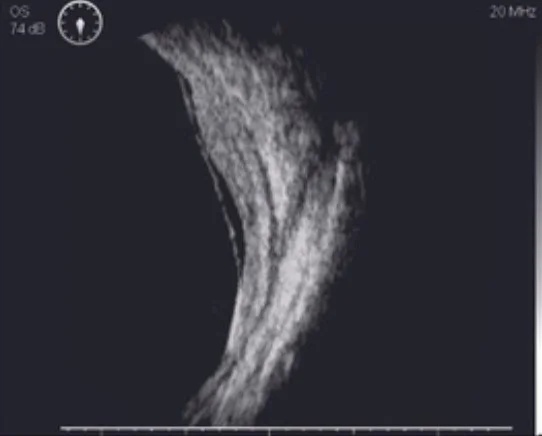

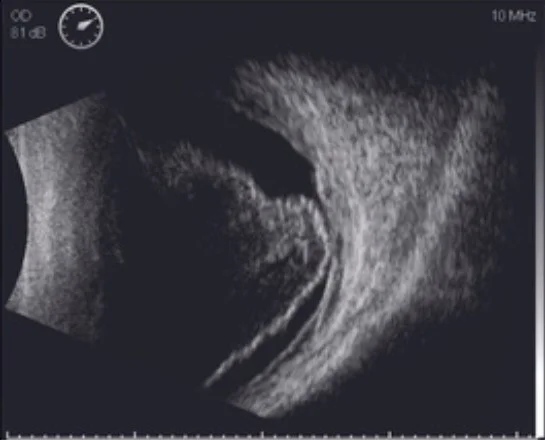

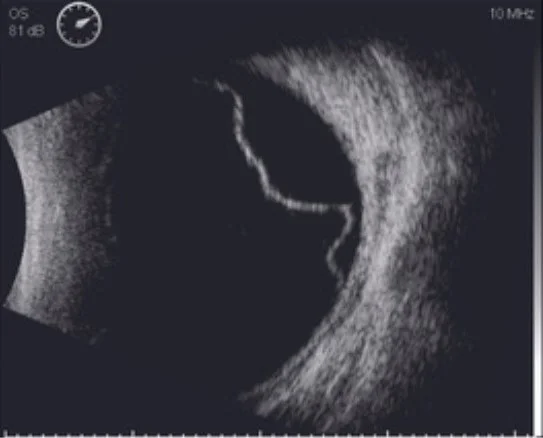

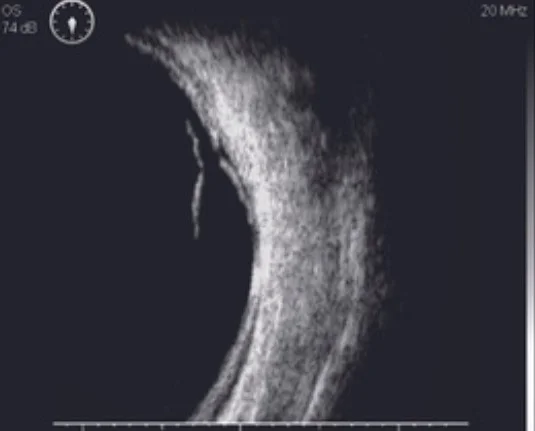

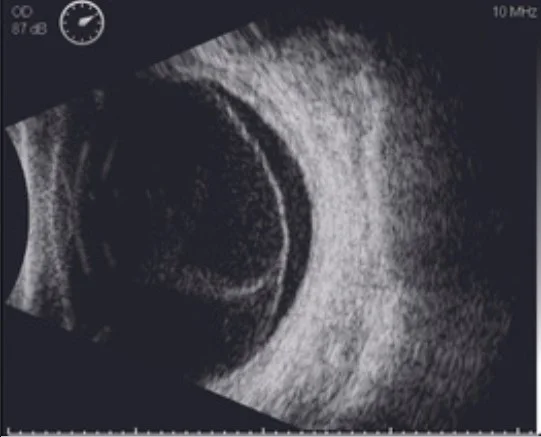

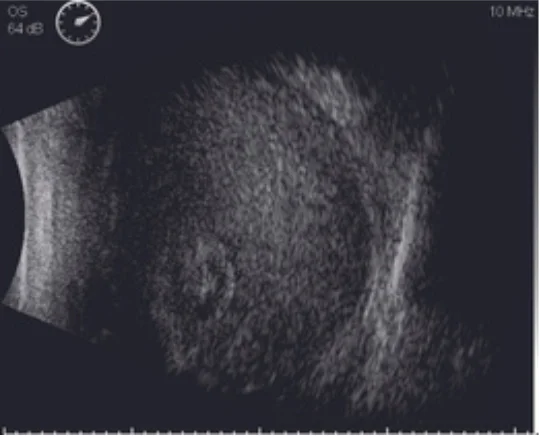

- High Definition 20MHz B-scan Image
- High Resolution LCD touch screen
- Image/video snapped and stored in real time in multiple buffer slots for immediate comparison and review
- Multiple TGC options for operator’s preference including vitreous-enhanced mode
- Editable clinical report with A-scan/IOL results, B-scan images, and textual comments with configurable entries
- Reports in .PDF format for sharing and print-out
- Compatibility with graph/text printer
- Diverse connections via HDMI and USB 2.0 ports
- HDMI interface for double-screen showcase
EAB 1 Ultrasonic A/B Scanner Technical Specifiaction
| Specification | Details |
|---|---|
| Ultrasound Probes | 10MHz B-Scan Probe, 20MHz B-Scan Probe |
| Axial Resolution | 10MHz B-Scan: <0.1mm, 20MHz B-Scan: <0.08mm |
| Lateral Resolution | 10MHz B-Scan: <0.2mm, 20MHz B-Scan: <0.15mm |
| Scan Depth | 10MHz: 28mm — 60mm, 20MHz: 19mm — 40mm |
| Scan Angle | 53° |
| Cineloop | 10s/100 frames with dynamic replay |
| Image Acquisition | Snapped & saved in real-time without any limitation |
| Gray Scale | 256 Levels |
| Gain | 1-105dB adjustable |
| TGC | Default |
| B+A Mode | Vitreous-Enhanced Mode, Customized |
| Measurements | AL Measurement |
IOL Calculation
| Specification | Details |
|---|---|
| General | SRK-II, SRK-T, BINK-II, HOLLADAY, HOFFER-Q, HAIGIS |
| Post Refractive | History-derived, Double K/SRK-T, Refraction-derived, SHAMMAS, ROSA |
Biometric A-Scan
| Specification | Details |
|---|---|
| Probe | 10MHz with Fixation Red Light |
| Gain | 1-60dB |
| Measuring Method | Contact or Immersion |
| Measuring Range | AL Range: 15mm-40mm |
| Measuring Accuracy | ±0.05mm |
| Measuring Mode | Automatic (Normal, Aphakic, Special, and Cataract) or Manual |
General
| Specification | Details |
|---|---|
| Display | High-Resolution 12.1" LCD |
| Printer Compatibility | Graph/Text Printer and Video Printer (PAL) |
| Interface | Video-Out (PAL), HDMI, USB 2.0 Ports |
| Operations | Touch Screen, Wireless Mouse & Keyboard, Footswitch |
| HDD | 500GB |
| Network | Folder/Report Sharing |
| Power Supply | AC 100~240V, 50/60Hz |
| Optional | 20MHz B-Scan Probe, Eye Cup, Immersion Shell, Video Thermal Printer, DICOM 3.0 Software Package |
